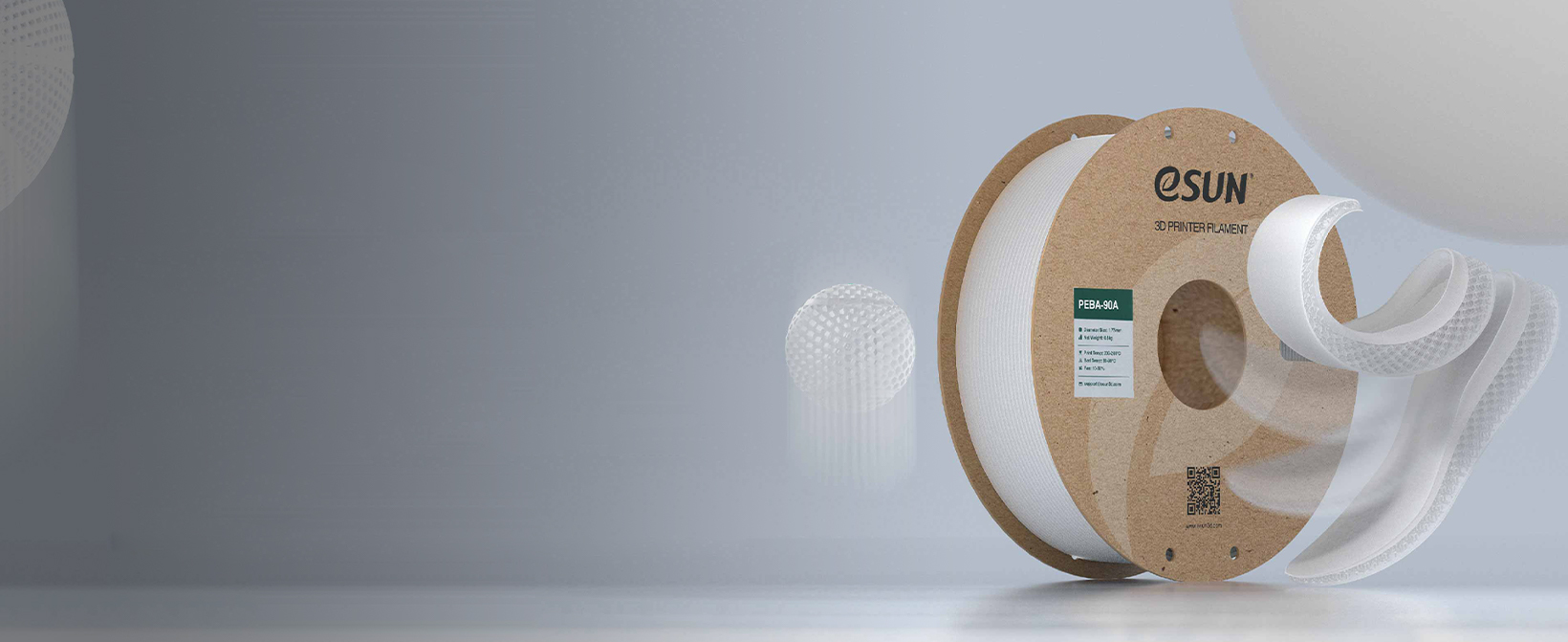

PEBA-90A
Fast Rebound, Exceptionally Lightweight
PEBA-90A
Product Description:
Fast Rebound, Exceptionally Lightweight
Maximum Rebound 70%
Low Density 1.01g/cm³
Maximum Volumetric Flow Rate 9mm³/s

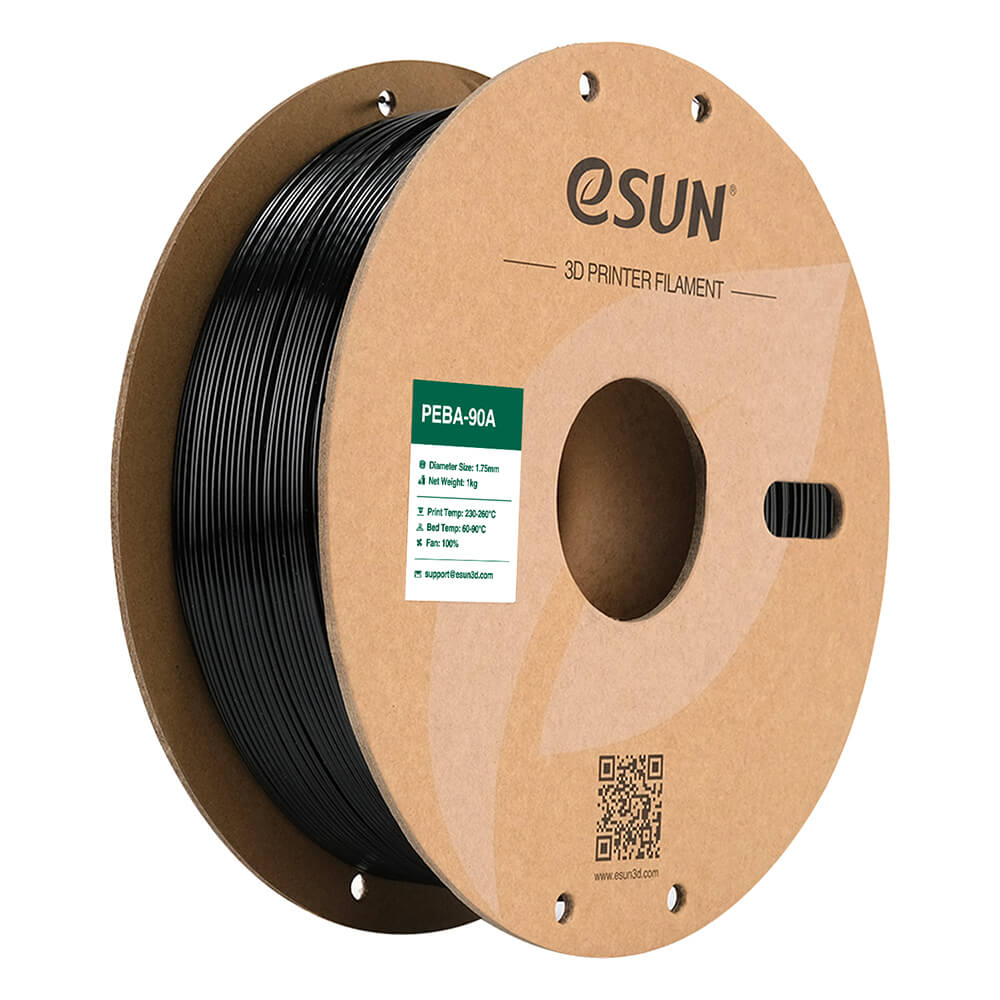

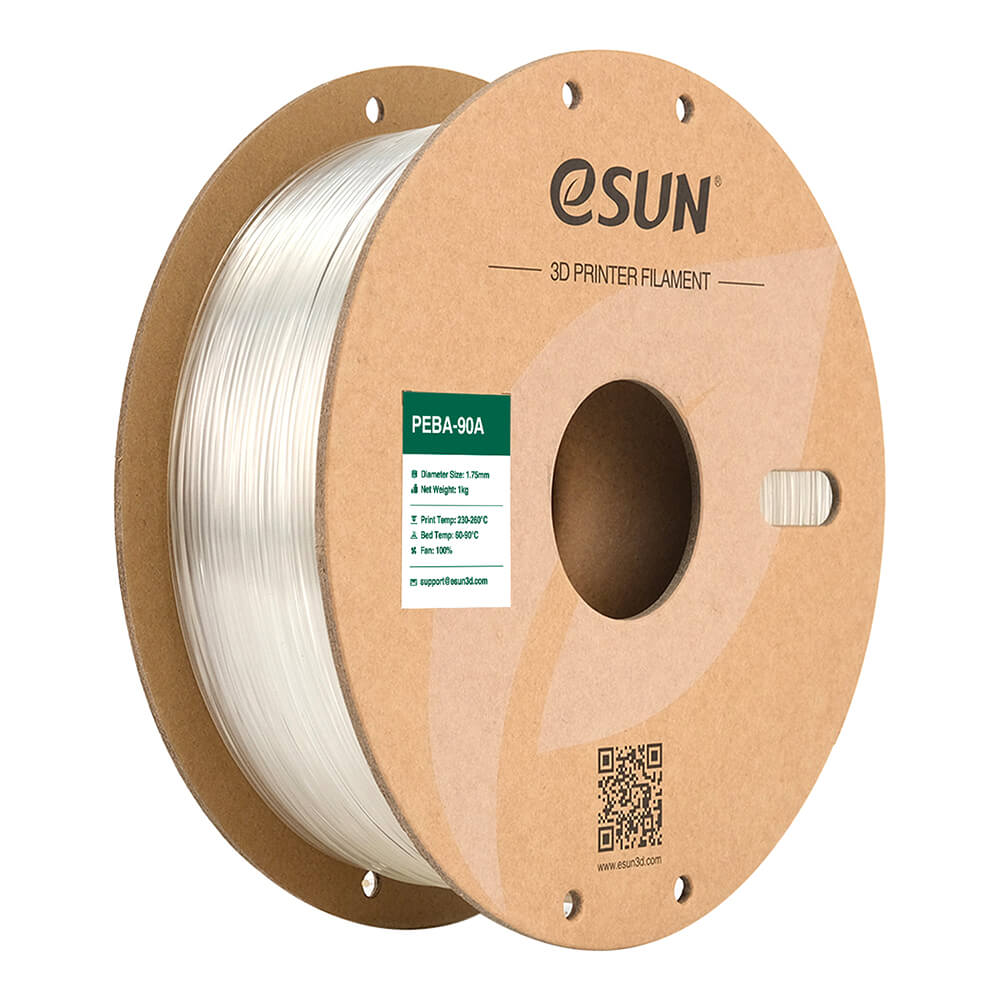

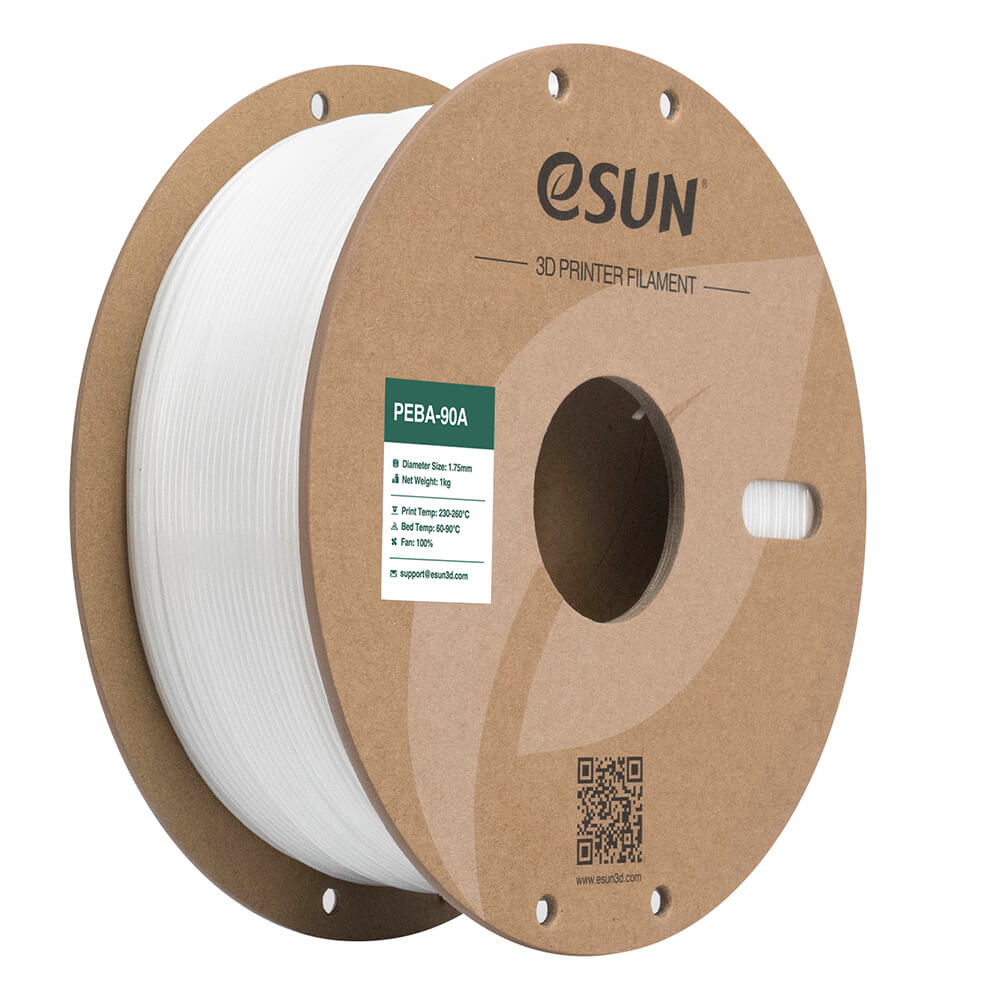

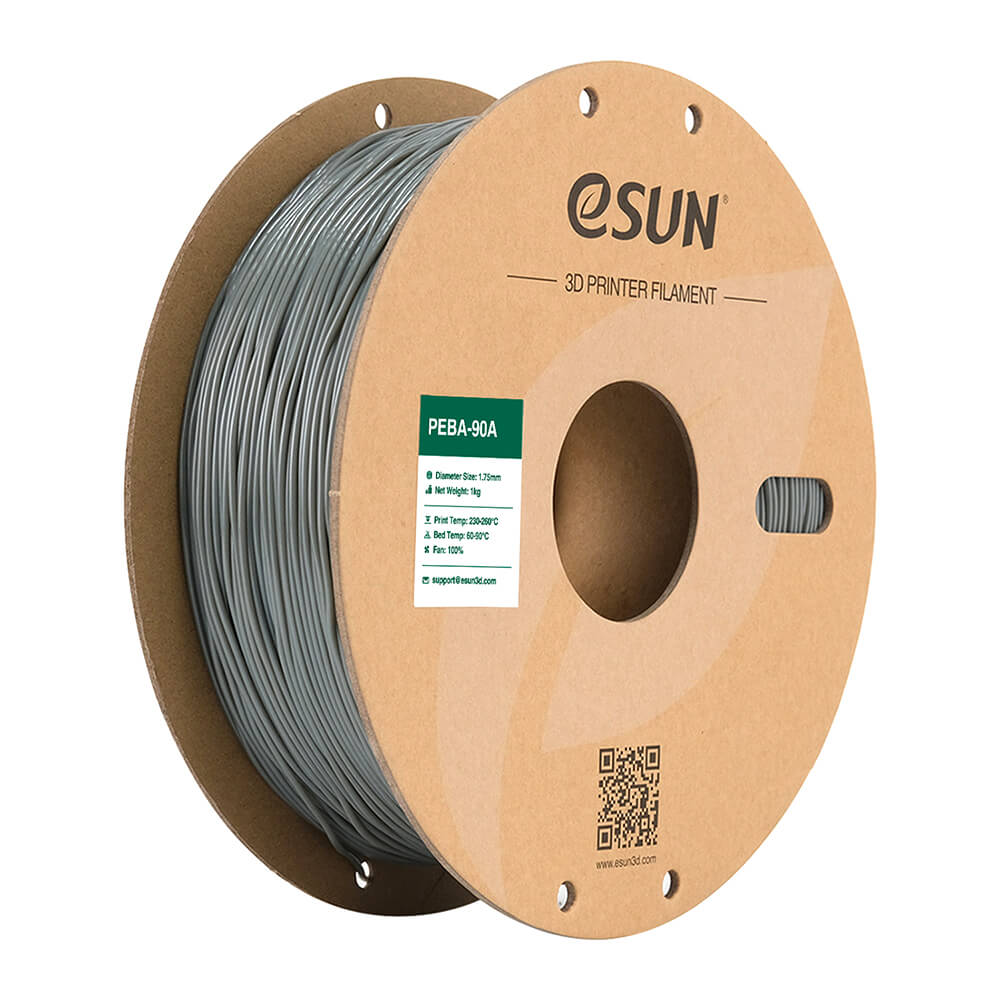

Color: BLACK, CLEAR, GREY, WHITE
Diameter Size: 1.75mm
Net Weight: 1kg/spool
Sellingpoint
Lightweight and easy to print
High resilience
Outstanding low-temperature toughness and cold resistance
Excellent impact resistance, wear resistance, and support performance
Request a Quote
Product Features
Maximum rebound rate reaches 70%
Strong dynamic cushioning and fast shape recovery allow it to absorb impacts and provide significant energy return upon release, making it ideal for applications requiring shock absorption, cushioning, and power propulsion.
Resistant to Repeated Bending
PEBA has excellent fatigue resistance, withstanding pressure and repeated bending without permanent deformation or performance degradation.
Resists Low-Temperature Embrittlement
PEBA maintains outstanding flexibility, rebound, and impact resistance under normal, low, or high temperatures, making it especially suitable for cold environments or low-temperature applications.
Ultra-Lightweight Lighter than TPU
With a density below 1.05g/cm³, PEBA is 15-20% lighter than TPU,significantly reducing part weight while maintaining strength, enabling lightweight design.
Smoother Printing More Reliable Performance
With low shrinkage, PEBA effectively resists warping, ensuring a stable printing process.lt enables higher printing speeds and smoother extrusion, significantly reducing print failure rates and ensuring a seamless transformation from design to final product.

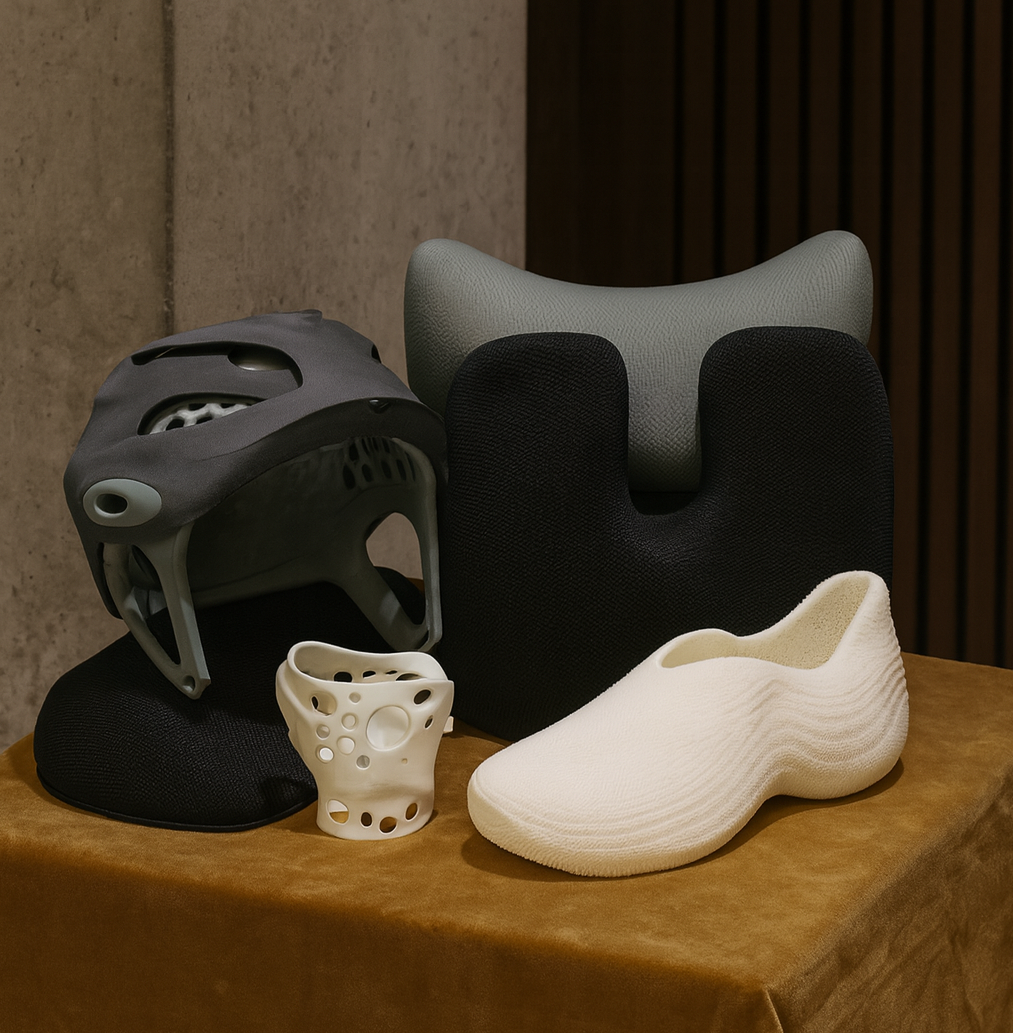

Applications
High-End Footwear Materials
Provides comfortable rebound and lightweight feel, ideal for professional midsoles and insoles in sports shoes.
Sports Equipment
Suitable for protective gear and cushioning components; strong, durable, and ideal fof professional performance.
Medical Equipment
Soft support, safe and eco-friendly suitable for orthopedic braces and rehabilitation accessories.
Smart Wearables
Skin-friendly and fatigue-resistant, adaptable to various wearable structures for both daily and extreme use.
Industrial Components
ldeal for shock absorption, cushioning, and flexible connection structures, serving durable applications in complex operating conditions.
DETAILS
Parameter Information
| Density(g/cm3) | 1.01 |
| Melt Flow Index | 10~16 |
| Heat Distortion Temp(℃,0.45MPa) | Vicat softening temperature: 120℃, 10N (110℃) |
| Tensile Strength(MPa) (XY) | ＞16.5 |
| Tensile Strength(MPa)(Z) | 7.5 |
| Elongation at Break(%)(XY) | ＞520% |
| Elongation at Break(%)(Z) | 150% |
| Extruder Temperature(℃) | 230-260℃/446-500℉ |
| Bed temperature(℃) | 60-90℃ |
| Fan Speed(％) | 10-50% |
| Printing Speed(mm/S) | 25-110mm/s |
| Heated Bed | Need |
| Printing Suggestions | Drying at 70℃ for 6 hours |
| Need to Dry | √ |
