TPU-95A
TPU material has good flexibility with a hardness of 95A, easy to print, and can quickly print large, complex and accurate prototypes of elastomer parts.Excellent elasticity, printed products with tpu filament are not easy to deform.
TPU-95A
Product Description:
Elastic and Soft, Strong and Durable
High Speed and Easy Printing

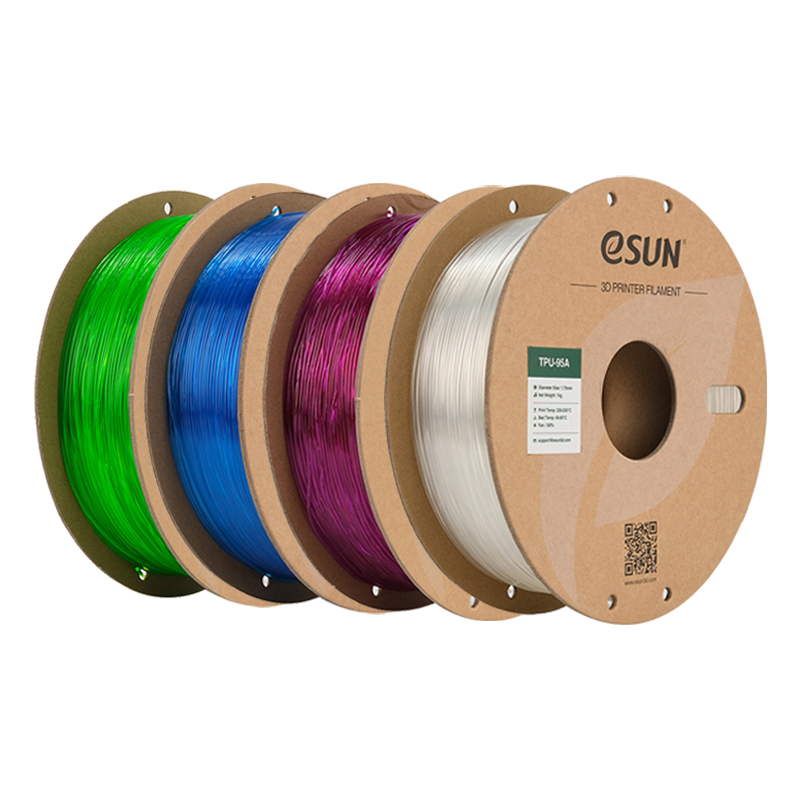

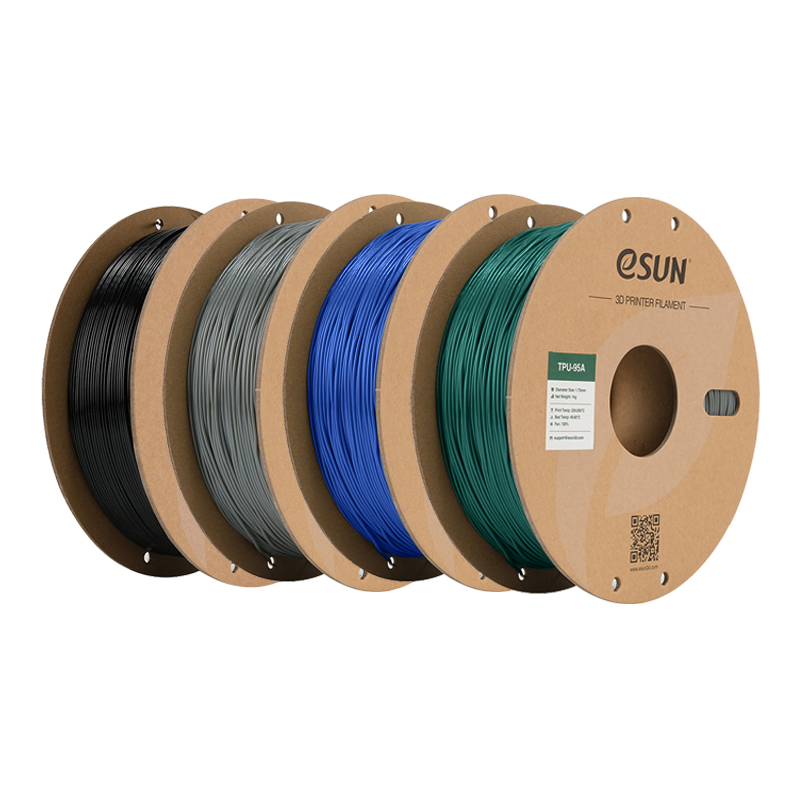

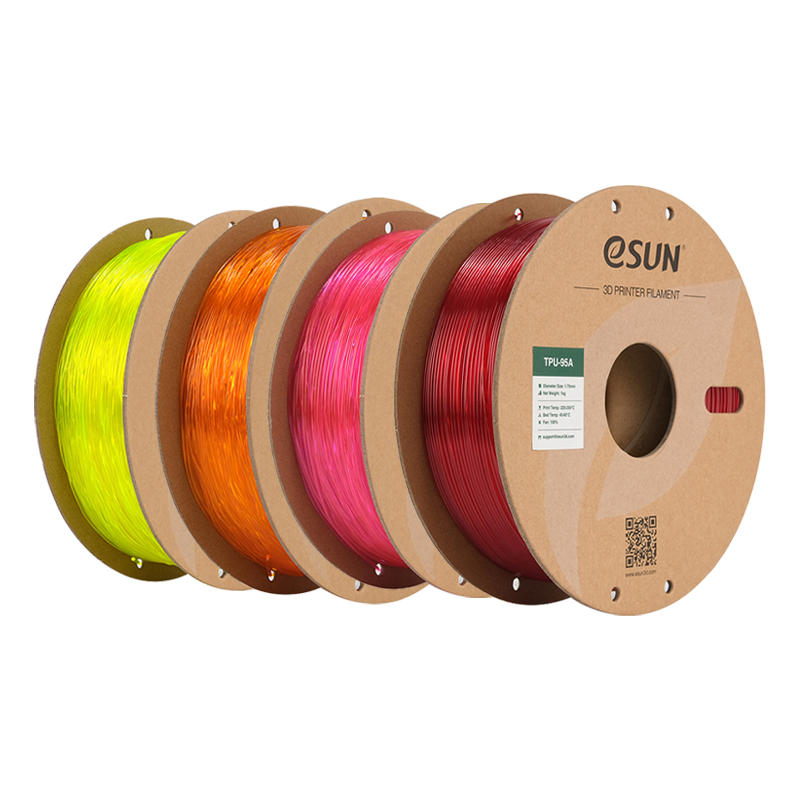

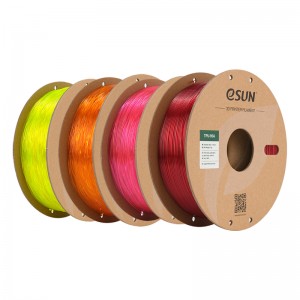

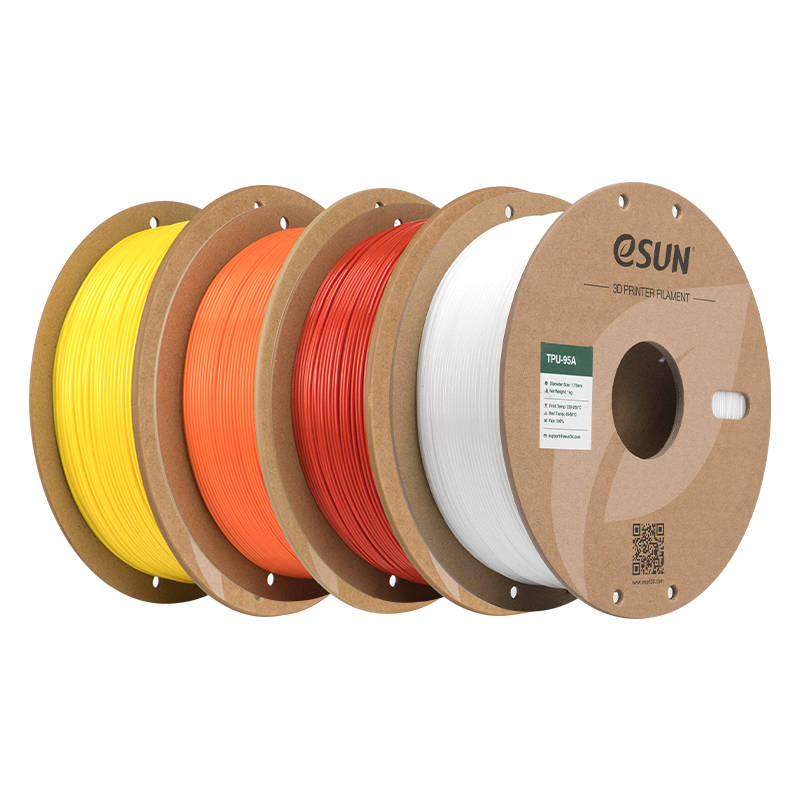

Color: WHITE, BLACK, GREY, ORANGE, RED, YELLOW, BLUE, GREEN, TRANSLUCENT ORANGE, TRANSLUCENT PINK, TRANSLUCENT RED, TRANSLUCENT YELLOW, TRANSLUCENT BLUE, TRANSLUCENT GREEN, CLEAR, TRANSLUCENT PURPLE
Diameter Size: 1.75mm
Net Weight: 1kg/spool
Request a Quote
Product Features
Elastic and Soft
Shore hardness of this filament is 95A, which has a certain degree of flexibility and softness, higher toughness and better elastic, it can be used for insoles and so on.
Strong and Durable
Filament has high toughness, high impact resistance, good flexibility, excellent tear resistance, wear resistance and cutting resistance, low long-term compression set rate, strong durable
Good Weather Resistance
Strong UV resistance, oil resistance, low temperature resistance, and aging resistance, suitable for various outdoor scenes
Easy Printing
Compatible with direct extruder and broden Extruder printers, excellent printability

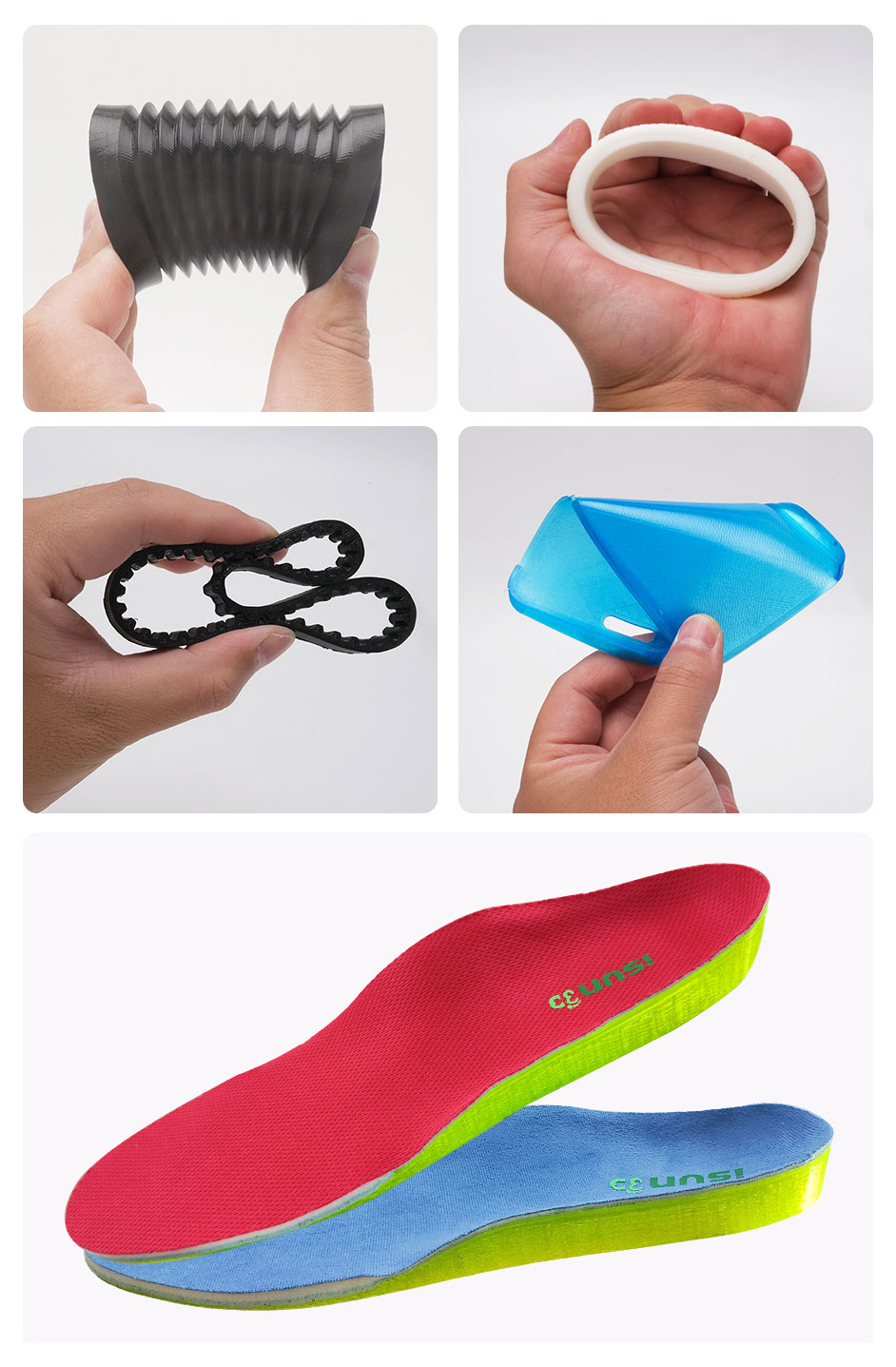

Application Field
Used in shoe materials, machinery, automobiles electronic appliances, pipelines, sports goods, medical prostheses, etc.
DETAILS
Parameter Information
| Density(g/cm3) | 1.21 |
| Melt Flow Index | 1.2(190℃/2.16kg) |
| Heat Distortion Temp(℃,0.45MPa) | / |
| Extruder Temperature(℃) | 220-250℃/428-482℉ |
| Bed temperature(℃) | 45-60℃ |
| Fan Speed(％) | 100% |
| Printing Speed(mm/S) | ＜100mm/s |
| Heated Bed | Need |
| Printing Suggestions | Drying at 55℃/>4h, short-range extruder, slow printing |
Download
eTPU-95A HS Parameters for Bambu Lab & Creality
Notes
1. It is recommended to dry the printing (55℃/＞4H) to achieve the best printing effect. It is recommended to use it with eBOX cartridges when printing.
2. It is recommended to use a short-range two-wheel reduction extruder designed for flexibility, TPU-95A materials are usually difficult to print on a remote extrusion machine. The remote extruder can try to print at a slower speed at 20mm/s or even slower.
3. The nozzle may have impurities after printing for a long time. It is recommended to use it with the cleaning filament. If necessary, replace the nozzle and throat with a new one.
